Hyperion Baton#

The Hyperion baton is controlled by two PVs; these are described under Special PVs

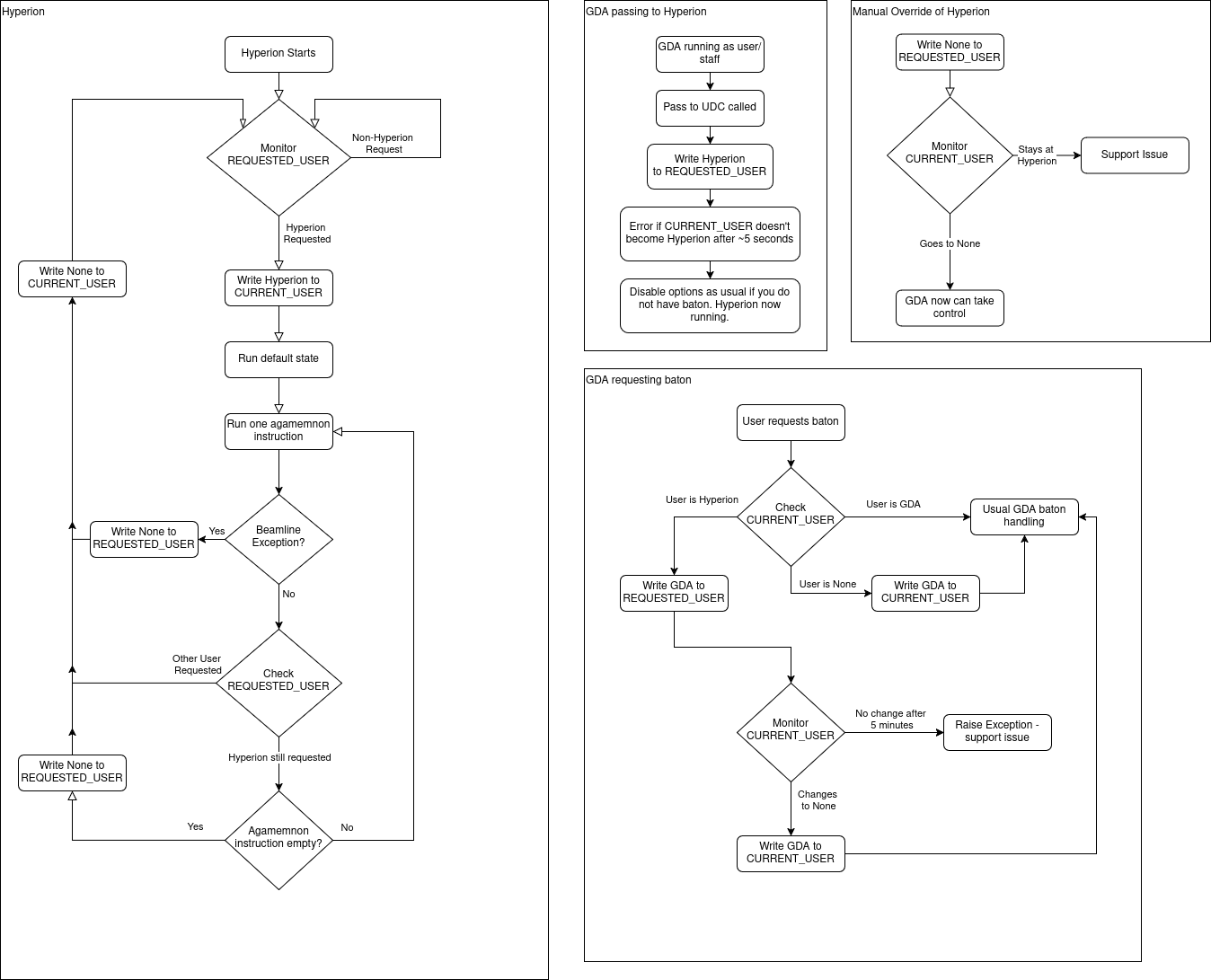

An approximate outline of how the various baton workflows operates is outlined in the flowcharts below:

../../../_images/417717258-afbd813c-8941-445c-9fdf-255c167453cf.png

GDA-side Baton Integration#

Below is a diagram showing how baton-handling in GDA integrates the GDA baton with the Hyperion Baton PV, using the HyperionUDCRunner.

The diagram represents an interim stage; at some point GDAUDCRunner can be eliminated and the baton management simplified.

../../../_images/46cf3d83c055a9a00af4304ba0fbd1686de48d91778d791ddc9db8c1f34af556.svg
